LD32 Iris Recognition Module Wide Identification Range Easy Integration

  • 1
  • 2

Brand Name : HOMSH

Model Number : LD32

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiated

Payment Terms : T/T

Delivery Time : 5-8 work day

Model : LD32

Product Dimensions : 100*28*32mm

Weight (Net) : 125g

User Capacity (People) : 200

Iris Image Quality : Compliant with ISO/IEC 29794-6:2015

Iris Recognition Distance : 33-55cm

Iris Registration Speed : ≤1s

Iris Recognition Speed : ≤1s

Contact Now

Module Overview

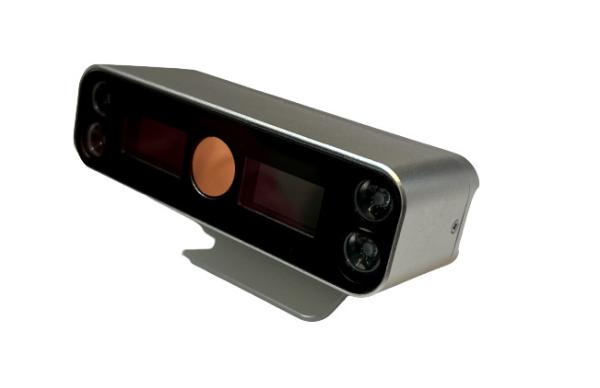

The LD32 Iris Recognition Module is a compact integrated USB module that incorporates PhaseIris iris recognition technology and features infrared LED fill light, white LED fill light, iris recognition sensor, and iris recognition algorithm processing capabilities. It supports single/dual-eye iris recognition with an iris working distance of 33-55cm, a built-in display, and liveness detection functionality. The module's internal storage capacity can reach up to 200 individuals.

Specifications

Specification Details
Model LD32
Product Dimensions 100*28*32mm
Weight (Net) 125g
User Capacity (People) 200
Iris Image Quality Compliant with ISO/IEC 29794-6:2015
Infrared Safety Standard Compliant with ANSI RP-27.1-96, IEC/EN62471
Iris Recognition Distance 33-55cm
Iris Recognition Modes Dual-eye or any single-eye recognition
Iris Registration Speed ≤1s
Iris Recognition Speed ≤1s
False Acceptance Rate (FAR) 10-7
False Rejection Rate (FRR) 10-3
Communication Interface USB CDC Serial Port, TTL UART
Interfaces USB: Type-C or 5-pin 1mm pitch connector
TTL UART: Soldering
Operating Temperature Range -10˚C to 55˚C
Humidity 0% to 90% RH (Non-condensing)
Power Supply 5V USB Direct Supply
Power Consumption Peak: 3.5W
Product Functions Iris Capture, Iris Registration, Iris Recognition,
Iris Encryption, Iris Decryption
Capture Method Non-contact, Automatic Trigger
Infrared Safety Standard Compliant with ANSI RP-27.1-96, EU IEC/EN62471
Iris Image Quality Compliant with GB/T33767.6-2018 for Iris Image
Data
Operating Environment Temperature -10˚C to 55˚C
Operating Environment Humidity 0% to 93% RH (Non-condensing)
Operating Environment Illuminance 0 to 6000Lux (Non-direct sunlight)
Power Supply Voltage 5V

Application Areas

The LD32 Iris Recognition Module is primarily used in access control systems, safes, door locks, file encryption/decryption, PC boot unlocking, system login authorization, electronic payment terminals, software application authorization, system encryption, identity authentication, and other devices.
